Flat Panel Solar Collector

1).Flat plate:copper and absorb layer

2).Freeze Protection: canot working in cold climate

3).Working pressure:6.0 bar for working,9.0 bar for testing,suited for existing government cold water supplier

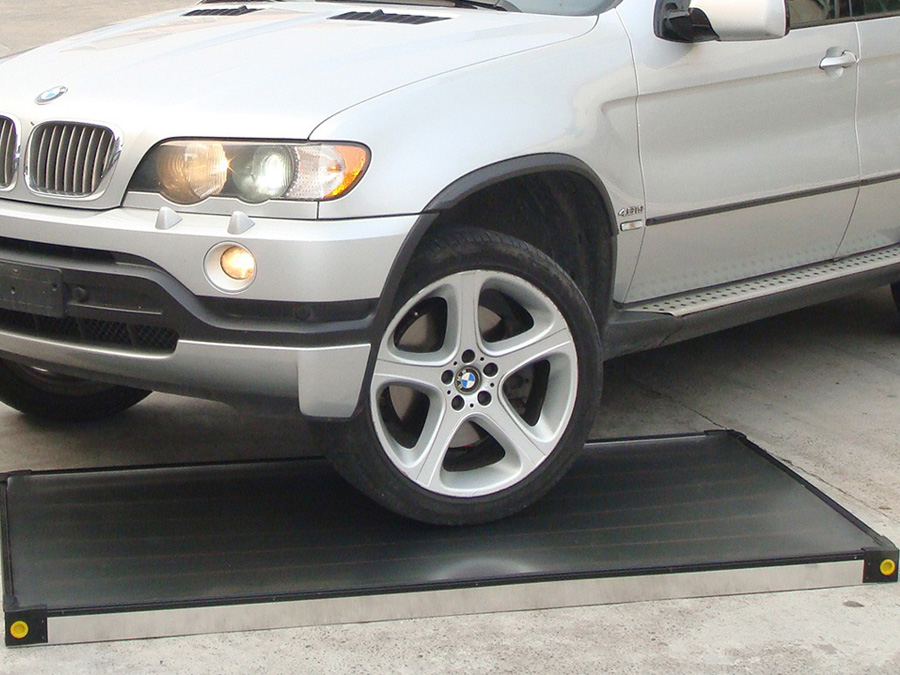

4).Safety:the glass made by Tempered Glass,can accept 200kg/m2

5).High efficiency and  temperature:highest temperature arrive 150 degree.

6).Provide enough heat energy to storage tank,each square meter can save 6.5khw energy every day!

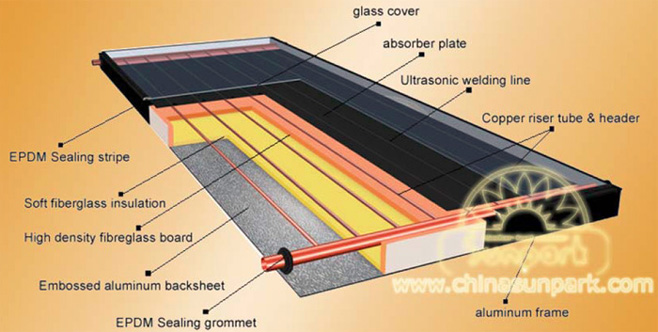

Glass cover:Low iron Tempered Glass(Least solar light lose)

Glass cover strongth:300kg/m²

Absorb area:2.0m²

Absorb meterial:Cooper

Absorb Coating:Black chromium(better selective surface)

Performance:Absorptivity≥93%,Emittance≤12%

Efficiency:≥65%

Riser tube& head pipe:Copper(1.0mm thickness)

Frame:Aluminum

Backsheet:Gailvanized steel

Sealing gromment:EPDM

Soft fiberglass insulation:GRP

Inlet & Outlet:3/4” BSP or Φ22mm compression optional

Size(LXWXH):2000x1000x80mm

Weight empty:37.0kg

Test pressure:10.0 bar

Working pressure:6.0 bar

Worked environment:All climate

20G/40G/40H Load:120/240/290
