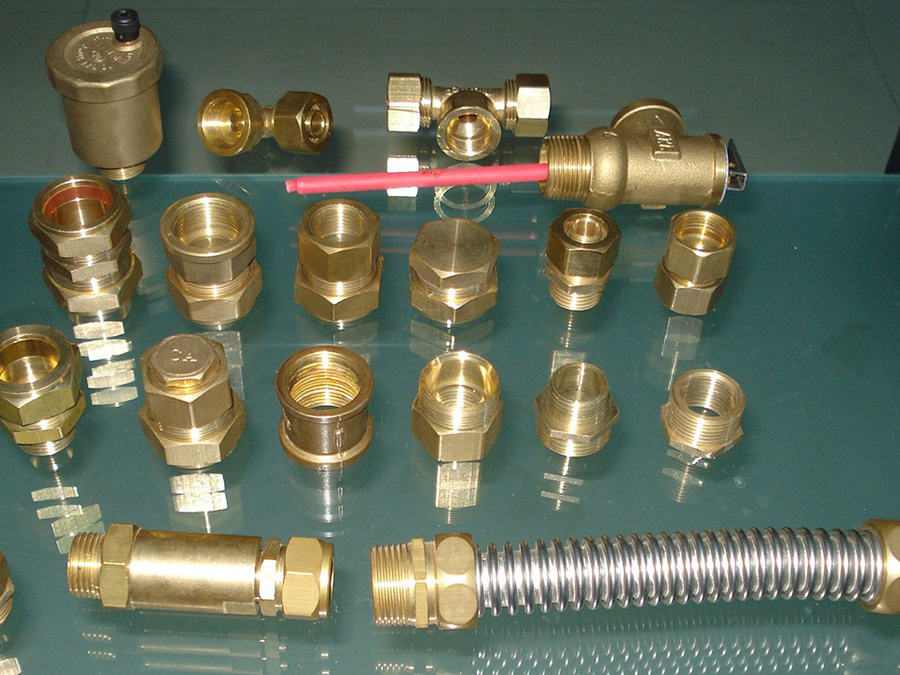

Introduction:Solar heater connectors and valves
Material:Copper
Certificate:CE & ISO9001
Working pressure:0~6.0 bar
Working temperaturer:-25~99 Deg.C
Brand:OEM
For high pressure solar hot water systems |

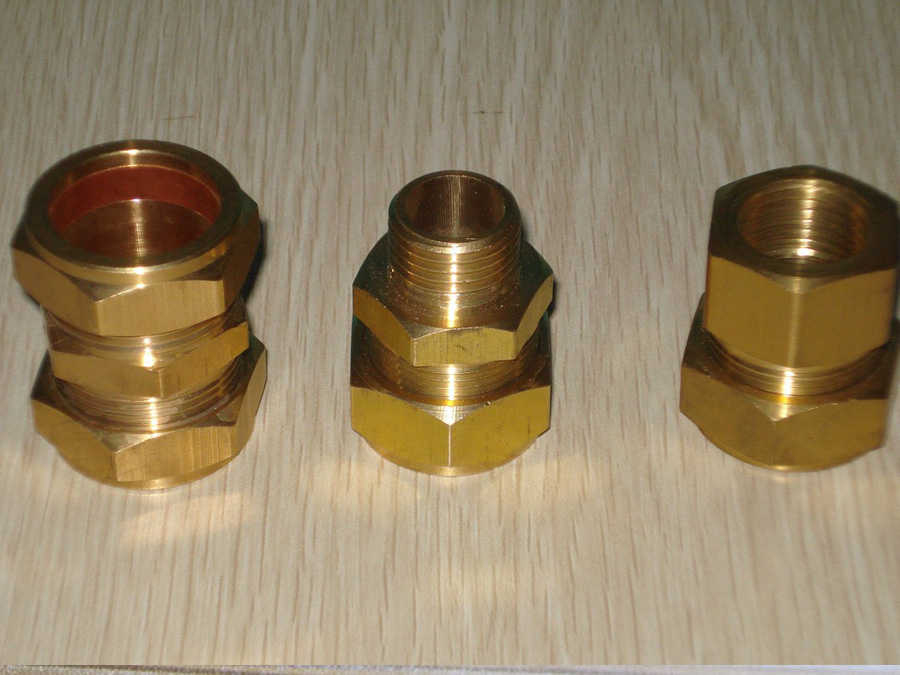

| Model:CU1001 Compressor connector |
  |
| 1001G2212 Inlet*Outlet 22mm*1/2" |
| 1001G2234 Inlet*Outlet 22mm*3/4" |
| 1001G2534 Inlet*Outlet 25mm*3/4" |
| 1001G1512 Inlet*Outlet 15mm*1/2" |
| Model:CU1002 Compressor connector |
  |
| 1002G2222 Inlet*Outlet 22*22mm |
| 1002G2525 Inlet*Outlet 25*25mm |
| 1002G1515 Inlet*Outlet 15*15mm |
| 1002G1212 Inlet*Outlet 12*12mm |
| Model:CU1003 Compressor connector |
  |
| 1003G2212 Inlet*Outlet 22mm*1/2" |
| 1003G2534 Inlet*Outlet 25mm*3/4" |
| Model:CU1004 Compressor connector |
  |
| 1004G22 Inlet*Outlet 22mm |
| 1004G25 Inlet*Outlet 25mm |

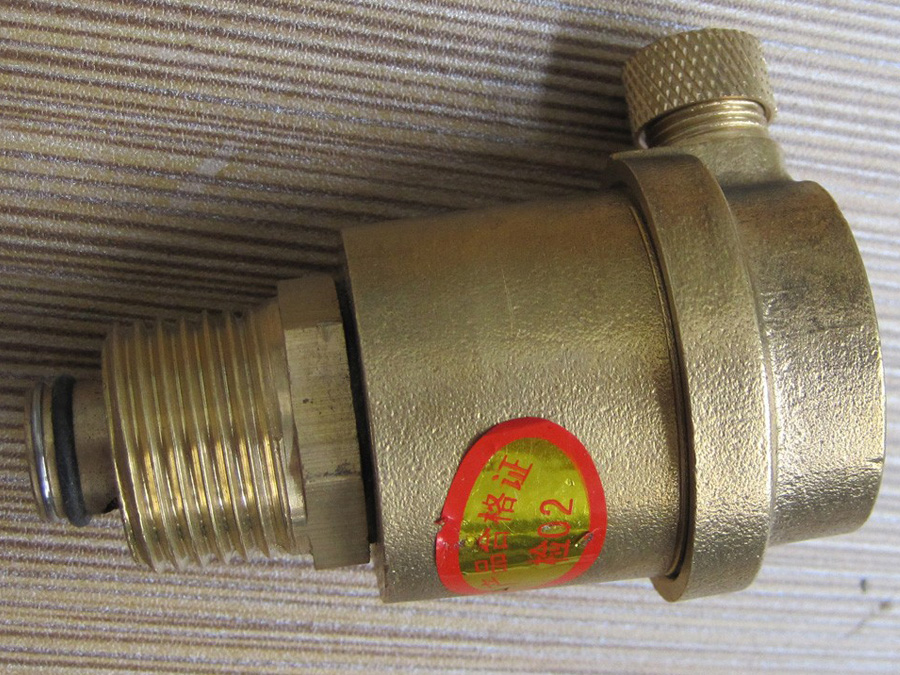

| Model:CU1017 Exhaust Valve |
 |
| Max Pressure: 16 bar Temperature: 110℃ |
| Model:CU1018 T/P Relief Valve |
 |
| Working Conditions: 6 bar/99℃ |
| Both for High pressure and Non pressure water system |
| Model:CU1015 Valve |
 |
| 1015G1212 Inlet*Outlet 1/2"*1/2" |
| 1015G3434 Inlet*Outlet 3/4"*3/4" |
| Model:CU1016 Check Valve |
 |
| 1016G1212 Inlet*Outlet 1/2"*1/2" |
| 1016G3434 Inlet*Outlet 3/4"*3/4" |
| Fuild flow just one direction can be through |
| For Non pressure water system |

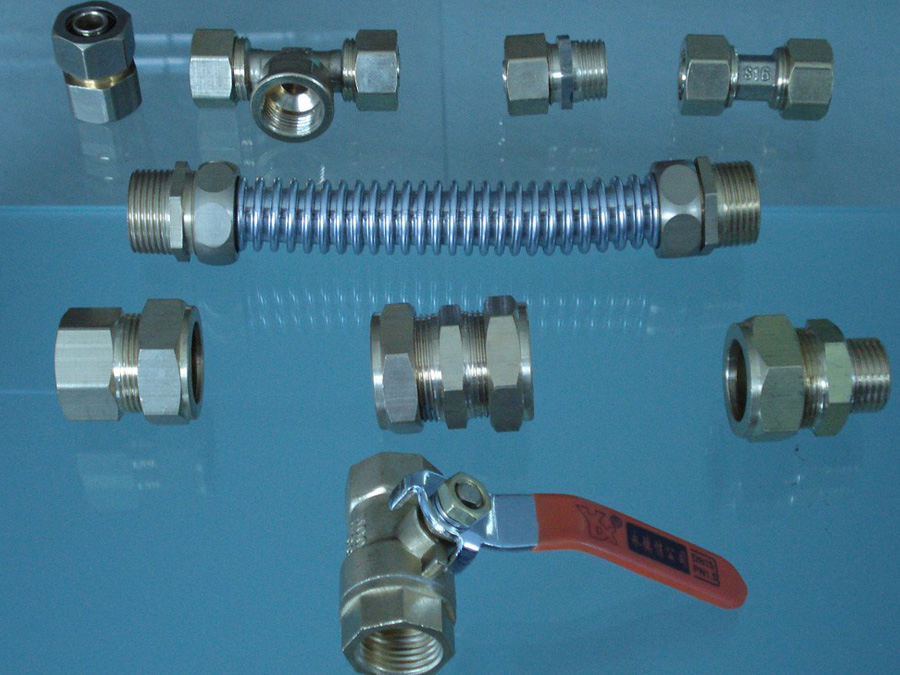

| Model:CU1019 PEX Pipe connector |
 |
| 1019G1512 Inlet*Outlet 15mm*1/2" |
| 1019G2234 Inlet*Outlet 22mm*3/4" |
| Model:CU1020 PEX Pipe connector |
 |
| 1020G1512 Inlet*Outlet 15mm*1/2" |
| 1020G2234 Inlet*Outlet 22mm*3/4" |
| Model:CU1021 PEX Pipe connector |
 |
| 1021G1501 Inlet*Outlet*Bypass 15*15*15mm |
| 1021G1502 Inlet*Outlet*Bypass 15mm*15*1/2" |
| 1201G2201 Inlet*Outlet*Bypass 22*22*22mm |
| 1201G2202 Inlet*Outlet*Bypass 22mm*22*3/4 |
| Model:CU1023 PEX Pipe |
 |
| 1023G15：DN15 Pex-Pipe,100M/Roll |
| 1023G22：DN20 Pex-Pipe,100M/Roll |
| Working pressure: 6 bar Working Temp.: -5~120℃ |
