Type:Flat panel collector
Circulation Type:Active Un-Direct / Closed Loop
Installation:Separate on Roof and Ground
Certification:CE,ISO9001,SGS
Solar collector:CUCFP series
Storage tank:High pressure vertical tank with coil Heat Exchanger
Controller & Pump Station:220V/110V 50~60Hz
Heat preservation:72hours
Warranty:15 Years
| Introduction |

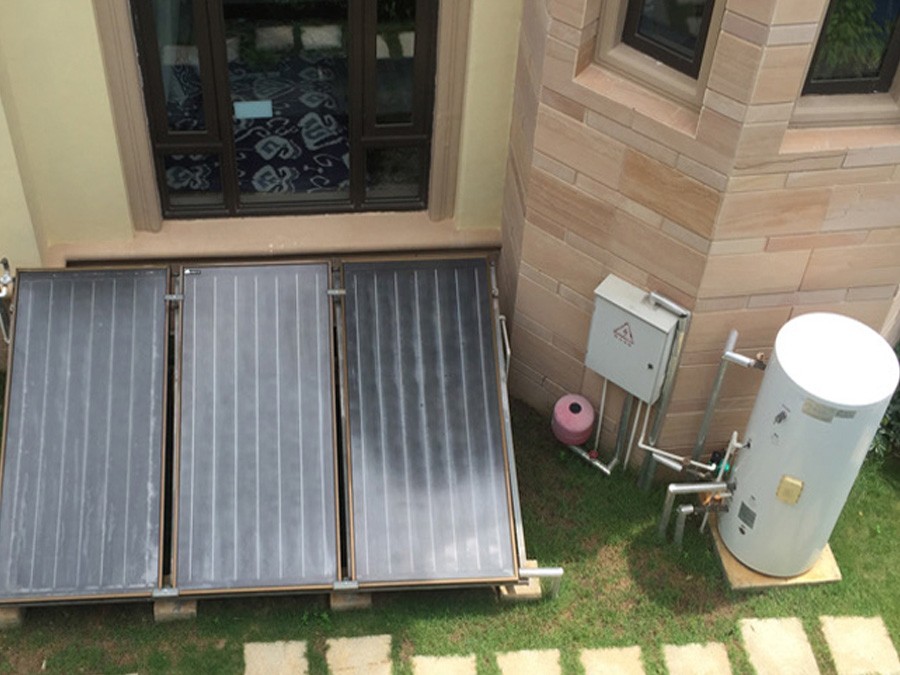

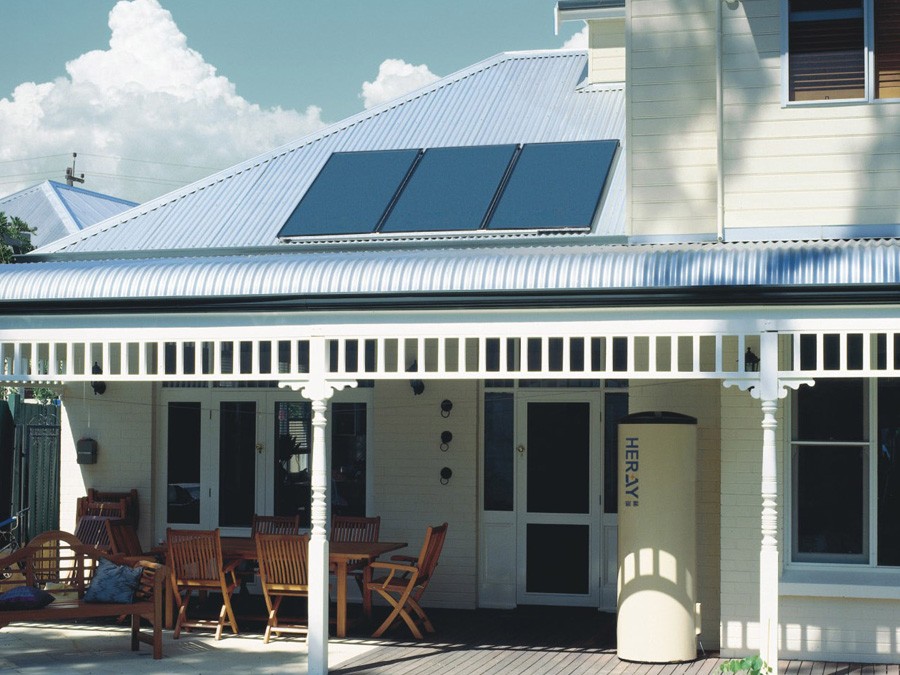

Sunpark split pressurized solar water heater is speciall designed for the villa.The split means that the solar panel separates from water storage tank.Panel maybe installed either on the roof or wall while water tank may be installed at any place in a villa flexible. Panel harmonizes with villa’s outlook and maintains villa’s outlook beauty.
1).Module design, arbitrary combination, harmony with the building perfectly
2).Intelligent control and automatic operation
3).Anti-freeze: Using the anti-freezing liquid as the medium and the controller has the anti-freezing function
4).Multifunction: bathing, washing, domestic heating etc
5).Work at anytime and enjoyable
| Specifications |

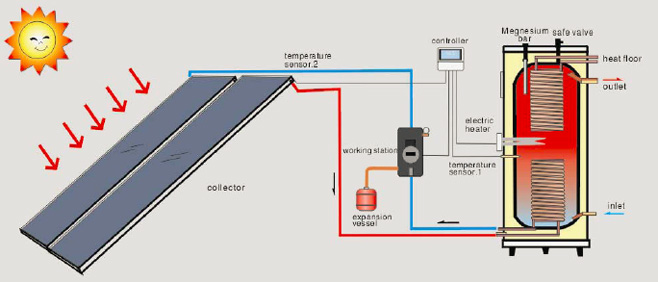

Complete system including THREE parts:
Part1: High Pressure flat plate collector,Model:CUCMT
Part2,High pressure storage tank with cooper coil heat exchanger

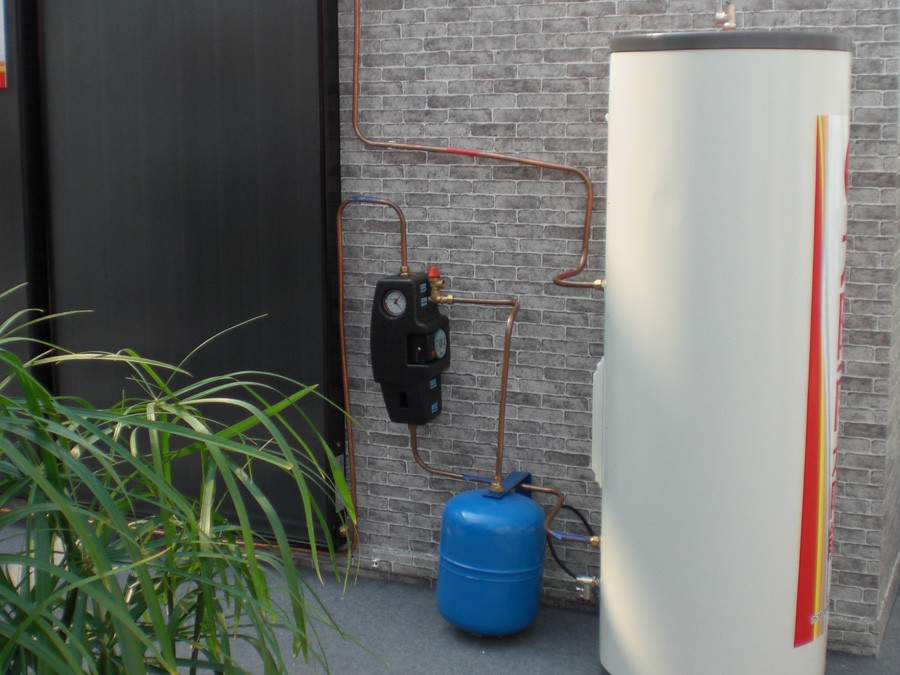

Part3.Circulate Systems(Working Station)
| Products list |
| Model:FPCLS150S |
Capacity:150L
Storage tank:Single coil heat exchanger inside
Flat panel collector: L2000 * W1000mm
Quantity of panels in per unit:1 pc
Packing Size: 0.95m3,95 KG
20/40G/40H Container load:32/66/66 pcs
| Model:FPCLS300S |
Capacity:300L
Storage tank:Single coil heat exchanger inside
Flat panel collector: L2000 * W1000mm
Quantity of panels in per unit:2 pcs
Packing Size: 1.45cbm,145 KG
20/40G/40H Container load:22/46/46 pcs
| Model:FPCLS300D |
Capacity:300L
Storage tank:Double coil heat exchanger inside
Flat panel collector: L2000 * W1000mm
Quantity of panels:2 pcs
Packing Size: 1.45cbm,145 KG
20/40G/40H Container load:22/46/46 pcs
