Type:Heat Pipe & Evacuated Tube
Circulation Type:Active Un-Direct / Closed Loop
Installation:Separate on Roof and Ground
Certification:CE,ISO9001,SGS
Manifold collector:CUCHP series
Storage tank:High pressure vertical tank with coil Heat Exchanger
Controller & Pump Station:220V/110V 50~60Hz
Heat preservation:72hours
Warranty:15 Years
| Introduction |
A 50/50 propylene glycol and water mixture from the collectors through a coil of pipe in the solar tank, and then is pumped back through the collectors. The potable water is warmed by heat transfer through contact with the pipe. These systems are pretty much the only choice in very cold climates. When there is not enough energy for sun, an electrical or gas back up element will be automatically switched on by controller.
1).Simple Installation, no maintenance, effective operation
2).Easy retrofitting to existing systems
3).Suitable for single and multiple solar heating application systems
4).Preferred option for extremely cold areas and questionable water quality
5).Incoming potable water is routed to the solar storage tank
6).Porcelain enamel or SUS316 stainless steel storage tank with electrical or gas back up
7).Double-walled copper coil heat exchangers in storage tank prevent contamination of household water
| Specifications |

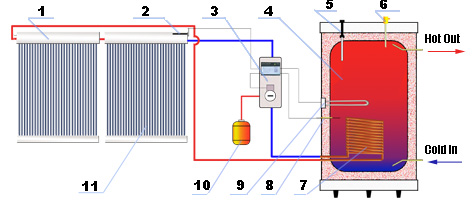

1. Collector Manifold
2. Temperature Sensor T1
3. Pump Station
4. Solar Boiler Storage Tank
5.Magnesium Rod
6.Relief Valve(T/P Valve)
7.Copper Coil HE
8.Temperature Sensor T2
9.Electric Heater and Thermostat
10.Expansion Vessel 11.Heat Pipe Solar Collector

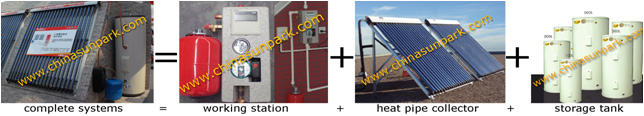

| Complete tem including Three Parts components |
| Single coil and Double coil Heat-Exchanger for optional |
| For CUCLS-D series |
| For CUCLS-S series |
| Products list |
| Model:CUCLS100 |
Capacity:100L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:10 pcs
Weight:80 KG
20/40G/40H Container load:55/112/130 pcs
| Model:CUCLS150 |
Capacity:150L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:15 pcs
Weight:90 KG
20/40G/40H Container load:40/82/96 pcs
| Model:CUCLS200 |
Capacity:200L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:20 pcs
Weight:110 KG
20/40G/40H Container load:28/57/68 pcs
| Model:CUCLS250 |
Capacity:250L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:25 pcs
Weight:140 KG
20/40G/40H Container load:24/50/58 pcs
| Model:CUCLS300 |
Capacity:300L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:30 pcs
Weight:170 KG
20/40G/40H Container load:20/41/48 pcs
| Model:CUCLS400 |
Capacity:400L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:40 pcs
Weight:200 KG
20/40G/40H Container load:16/32/41 pcs
| Model:CUCLS500 |
Capacity:500L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:50 pcs
Weight:230 KG
20/40G/40H Container load:14/28/35 pcs

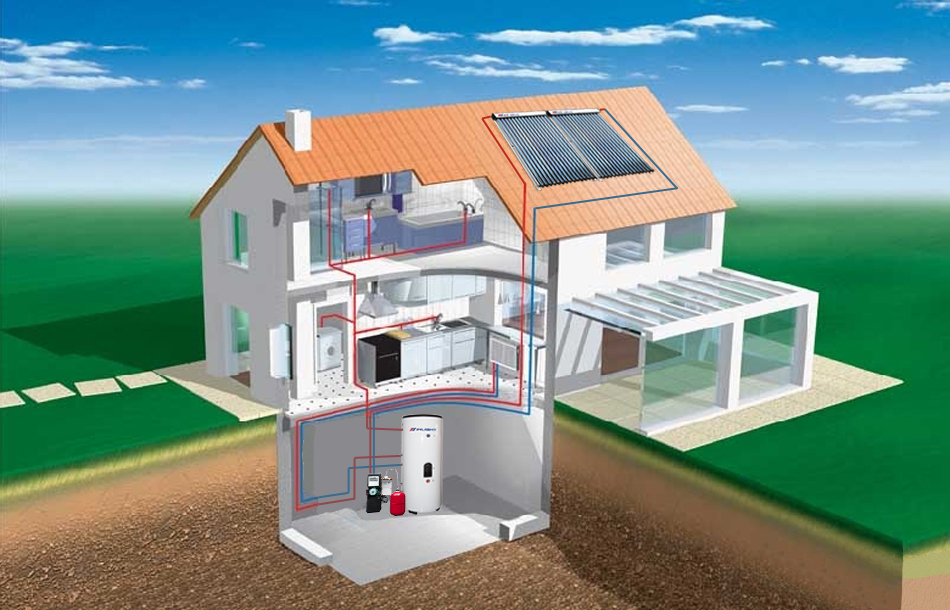

| Working principle |
*** We can offer the others capacity and specifications as your required ***
