Type:Heat Pipe & Evacuated Tube
Circulation Type:Active Direct / Open Loop
Installation:Separate on Roof and Ground
Certification:CE,ISO9001,SGS

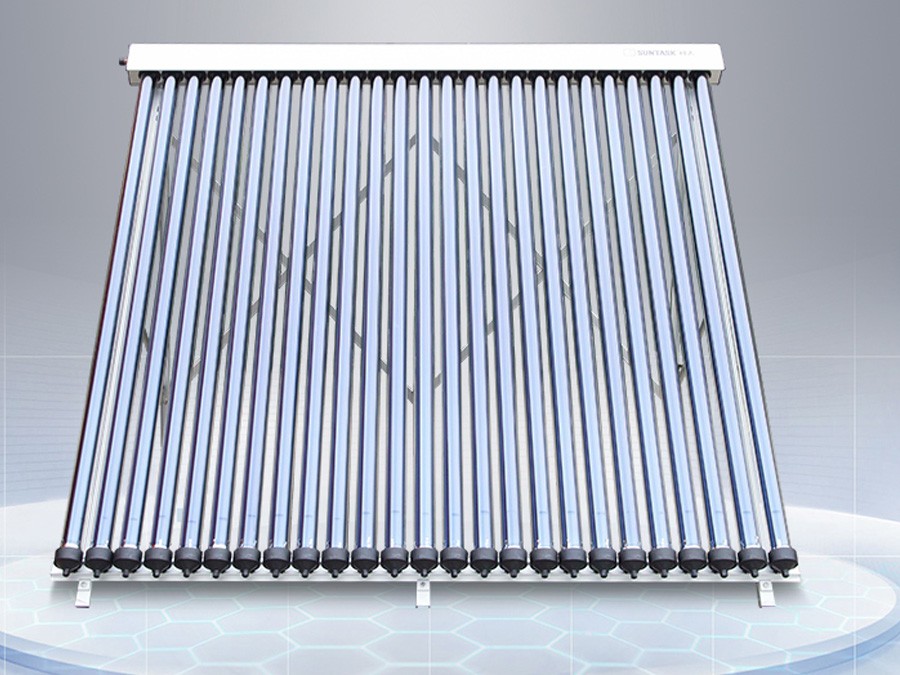

Manifold collector:CUCHP series

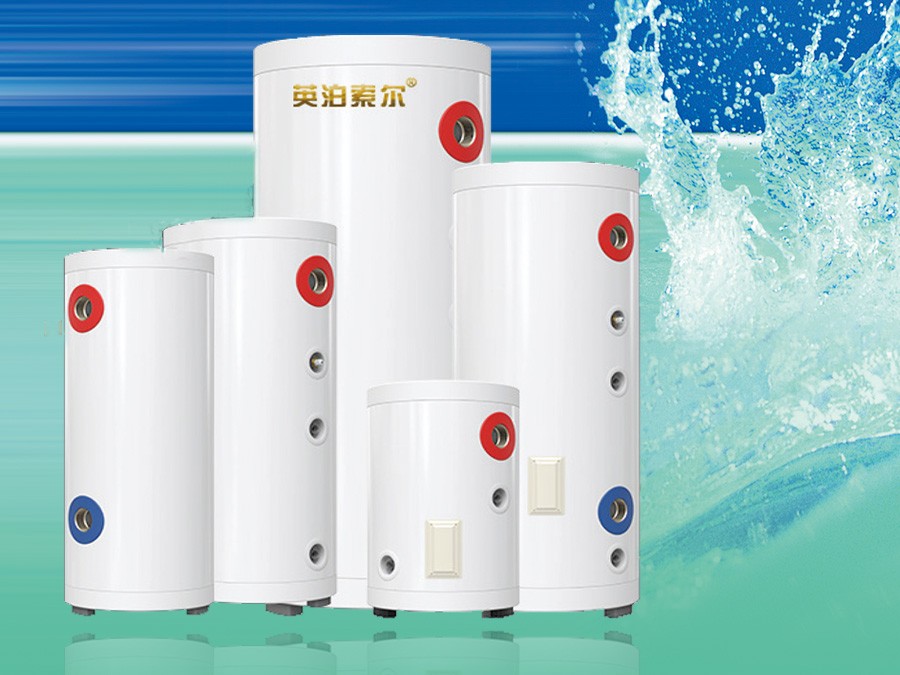

Storage tank:High pressure vertical tank
Controller:SR81 220VAC/50~60Hz
Circulate pump:Wilo RS15/6
Heat preservation:72hours
Warranty:15 Years
| Introduction |
An Open Loop Water Heating System provides many advantages It is the simplest and typically the least expensive active system to install. There is no heat exchanger, which allows efficient heat transfer directly to the water. The system Operates at standard line pressure. When there is not enough energy for sun, an electrical back up element will be automatically switched on by controller.

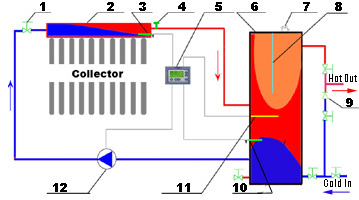

| Specifications |
1. Valve
2. Manifold
3. Temperature Sensor T1
4.Exahust Valve (Air Vent)
5. Controller
6. Solar Boiler(Storage Tank)
7.Relief Valve(T/P Valve)
8. Magnesium protection
9. Checking Valve
10.Temperature Sensor T2
11. Electric Heater and thermostat
12. Circulate Pump
| Products list |
| Model:CUOLS100 |
Capacity:100L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:10 pcs
Weight:75KG
20/40G/40H Container load:58/118/140 pcs
| Model:CUOLS200 |
Capacity:200L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:20 pcs
Weight:100KG
20/40G/40H Container load:28/57/70 pcs
| Model:CUOLS300 |
Capacity:300L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:30 pcs
Weight:150KG
20/40G/40H Container load:21/43/50 pcs
| Model:CUOLS400 |
Capacity:400L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:40 pcs
Weight:180KG
20/40G/40H Container load:16/32/42 pcs
| Model:CUOLS500 |
Capacity:500L
Heat Pipe & Vacuum tube:Ø58 * 1800mm
Tubes quantity in per unit:50 pcs
Weight:200KG
20/40G/40H Container load:14/28/35 pcs

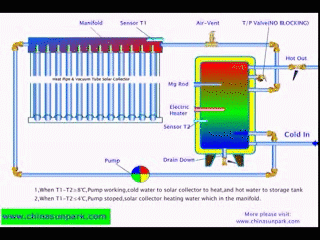

| Working principle |
*** We can offer the others capacity as your required ***
