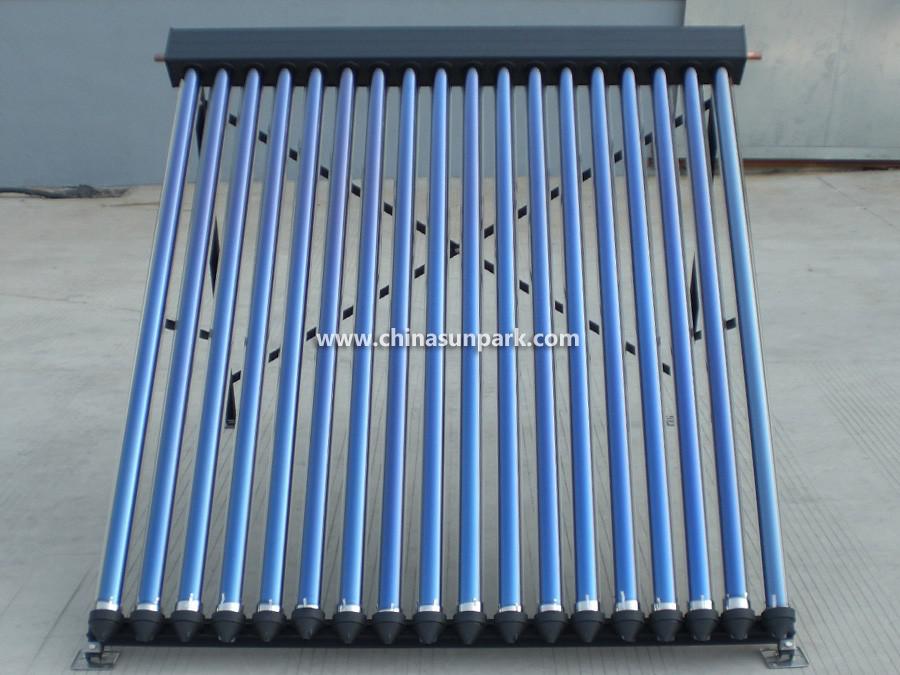

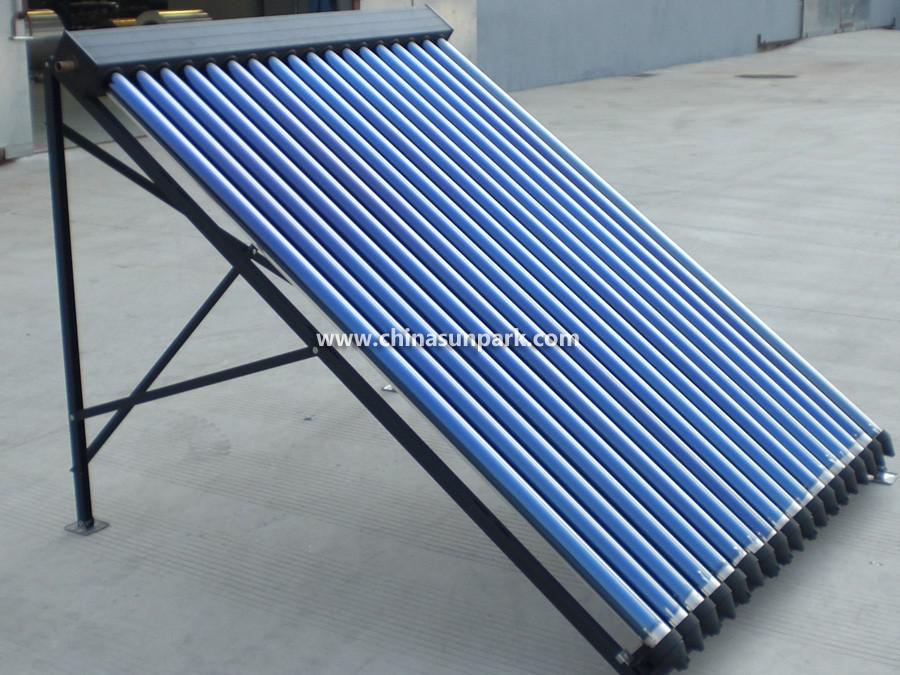

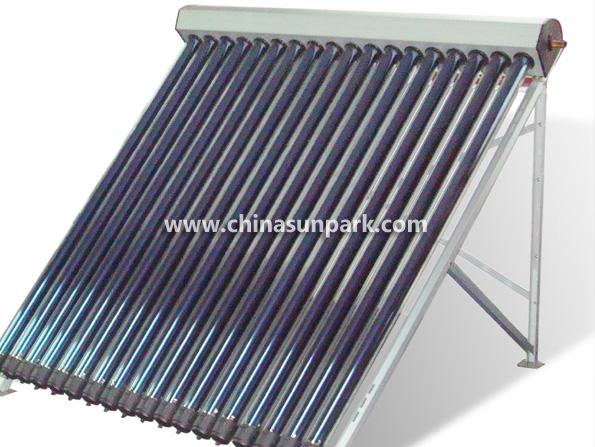

Type:High pressure heat pipe tube solar collector
Color:Aluminum alloy painted
Manifold materials:Copper

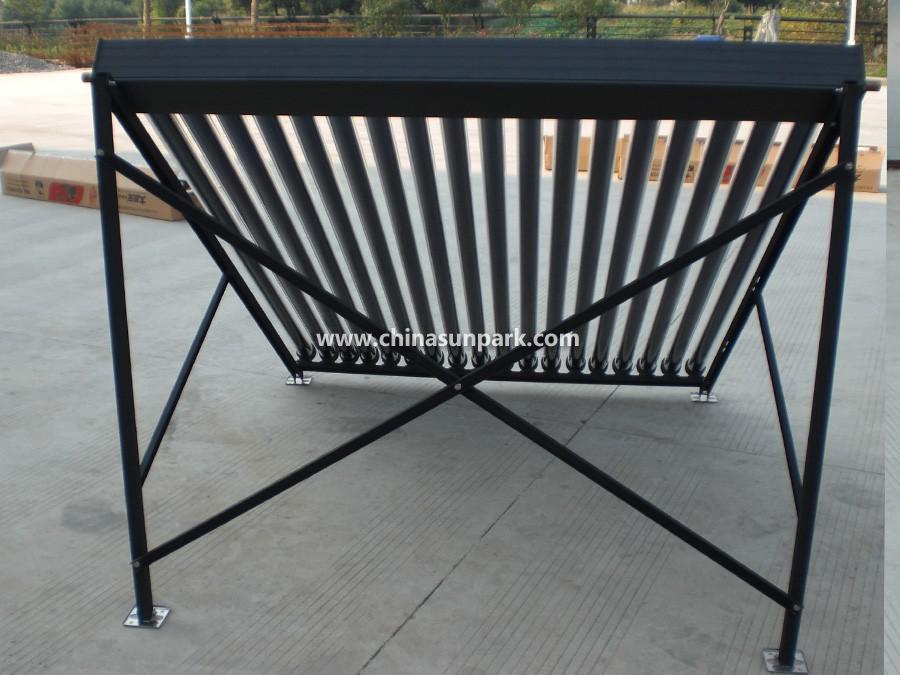

Bracket:Aluminum alloy
Working angle against sun:27~38 Deg.
Working pressure:6.0 bar
Working temperature:-25~99°C
Certificate:CE,ISO9001,Solar-Keymarket
Guarantee:15 years
| Introduction |

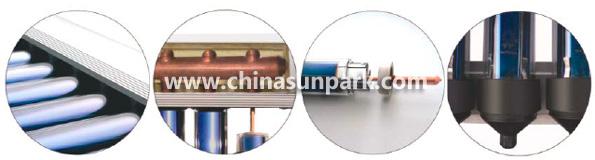

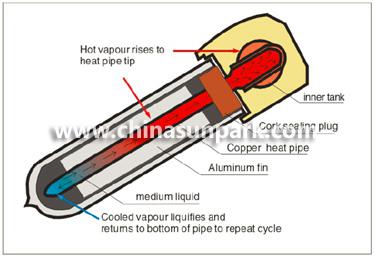

○ The pipeline is made of all the red copper and conducted By heat transfer medium liquid. Water can't flow in vacuum Tubes and operated when confined. The manifold uses Aluminum alloy mould material of high strength with Air flow design. It is furnished in good style. |
| ○ Can with stand high pressure when it works. |
| ○ Module design, arbitrary combination, which can meet the demand of large water consumption |
| ○ Transfer heat speed 1000 times than vacuum glass tube. |
| ○ Antrifreeze -35 Deg.C |
| ○ Best transferred materials is Glycol Mixture |
| Specifications |

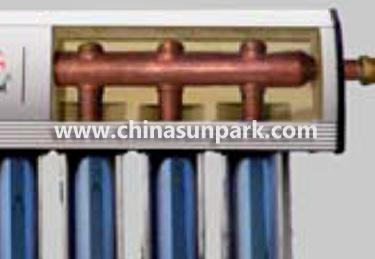

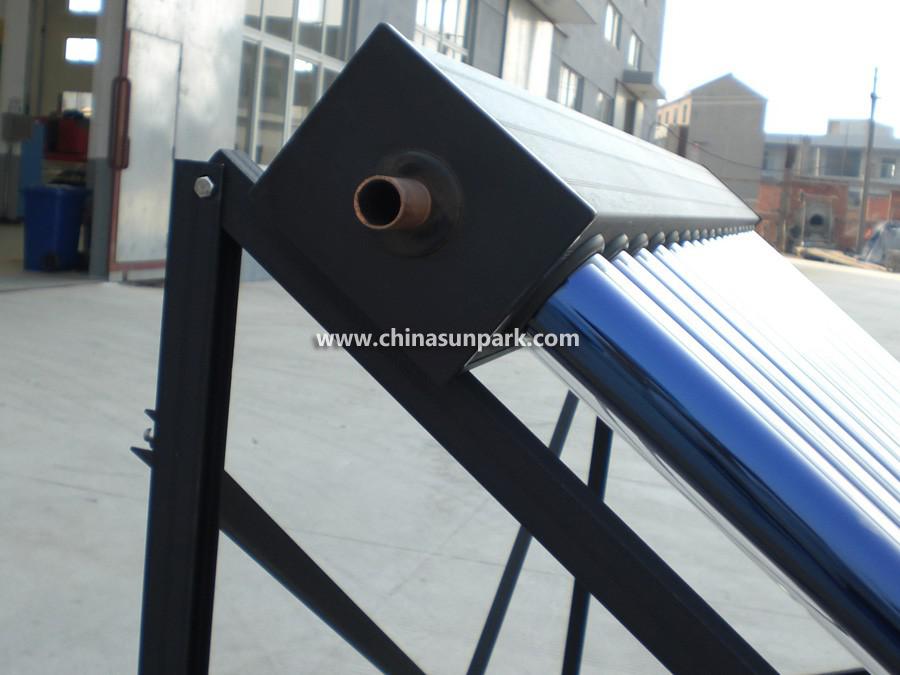

| Manifold (interior): red copper inner and outshell aluminum alloy |
| Glass tube dimensions: 58mm x 1.8m / 47mm x 1.5m |
| Daily efficiency: ≥55% (≥42% in winter) |
| Hail resistance: 25mm |
| Max pressure: 12 bar |
| Coating of vacuum tube: ALN/AIN-SS/CU |
| Heat Pipe: anti-freezing > -35 °C |
| Details of Heat Pipe Solar Tube please click here |
| Model : CUCHP58/12 |
| Daily hot water out:120L |
| Heat pipe Vacuum Tubes:58*1800mm |
| Tubes quantity:12pcs |
| Per unit package:0.21CBM,29KG |
| 20/40G/40H container load:134/271/320 pcs |
| Model : CUCHP58/15 |
| Daily hot water out:150L |
| Heat pipe Vacuum Tubes:58*1800mm |
| Tubes quantity:15pcs |
| Per unit package:0.22CBM,38KG |
| 20/40G/40H container load:136/250/316 pcs |
| Model : CUCHP58/20 |
| Daily hot water out:200L |
| Heat pipe Vacuum Tubes:58*1800mm |
| Tubes quantity:20pcs |
| Per unit package:0.31CBM,60KG |
| 20/40G/40H container load:89/174/216 pcs |
| *** We can make any quantity tubes as your offer *** |

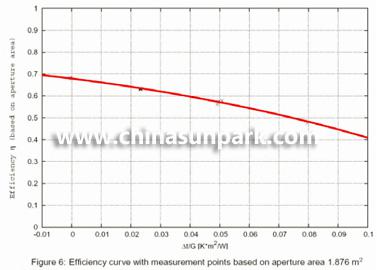

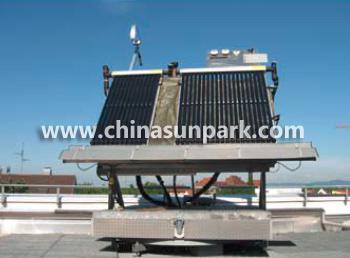

| Efficiency Inspection:EN12975 Standard-Solar Keymark-by TUV |
