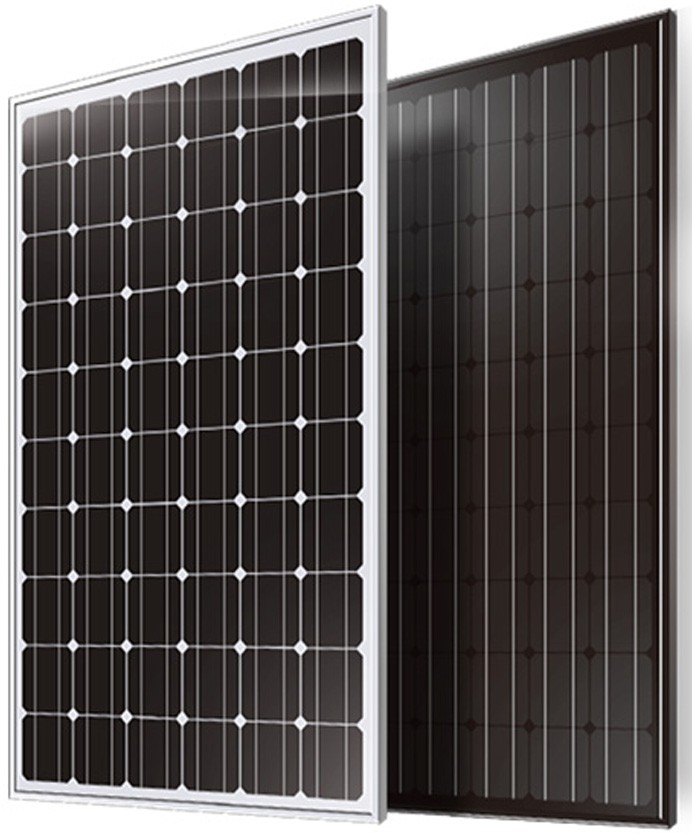

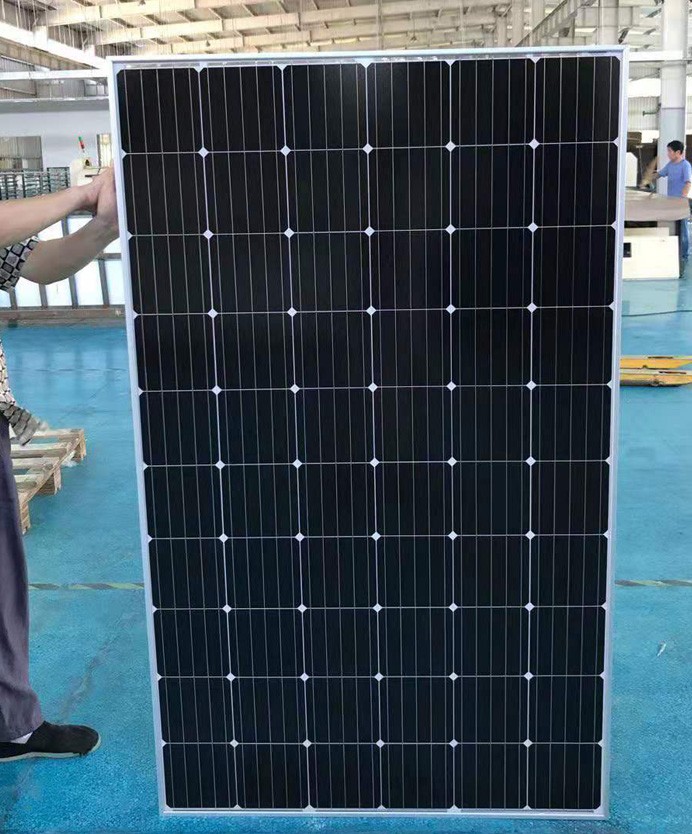

Mono solar panel 60 cells

Type:290W/295W/300W/305W optional
Cells:Monocrystalline
Qty.of cells per panel:60pcs

Mono solar panel 60 cells 290w-305w
Introduction

1).IP68 Junction Box and Connector have a high degree of waterproof, effectively resist the harsh environment

2).The junction box carries a current of 15A, ensuring high current flow through the modules

3).Glue-spilled tank has a double-layer waterproof, cross-section with hook-shaped aluminum frame, enhanced by 10% of the mechanical load strength

4).The module refines the current division, thus effectively reducing the loss of up to 2% due to mismatch and increasing the power output of

the system

5).Excellent salt spray resistance, anti-ammonia and anti PID, TUV, SUD certification approved

6).Passed the 2400pa wind load and 5400pa snow load test, ensuring that the module has a stable mechanical life

7).Modules are packaged according to color classification, to achieve consistent appearance after installation


Mechanical Drawings

1607410159176000.png  1607410176536670.png

Mechanical Specifications

Cell Type : Mono Crystalline 156.75x156.75mm

Number Of Cells: 60 pcs(6X10)

Dimensions(AxBxC):1640x995x30

Weights :19 kg

Front Glass :3.2mm Tempered Low Iron Glass

Frame : Clear Anodized Aluminum Alloy

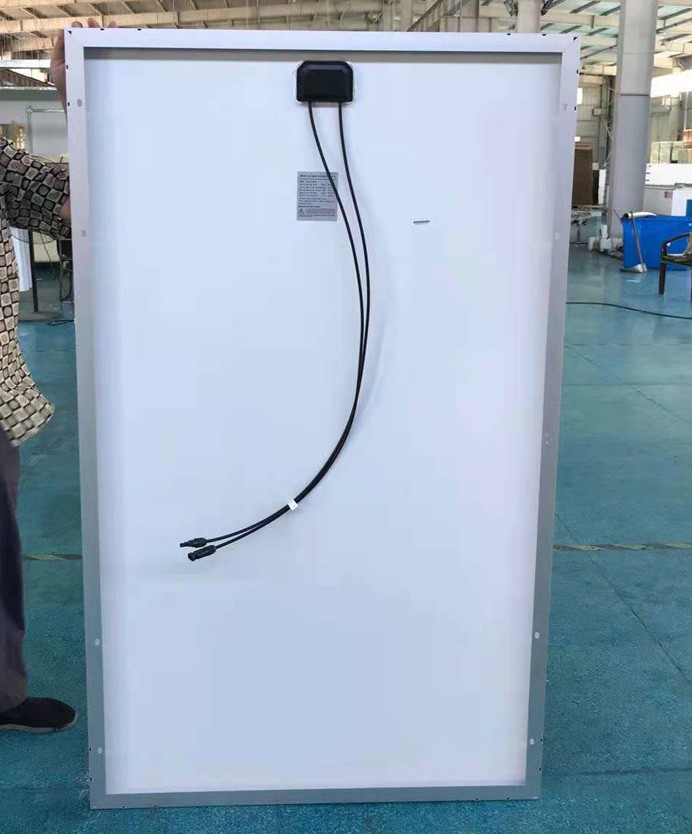

Junction Box : IP68,with Bypass Diodes

Connectors : Mc4 Compatible

Output Cables : Tuv,±length 900mm,4.0mm²


Electrical Characteristics
Model:CUPV-60M-290W
Maximum Power At STC(Pmax)    290W
Short Circuit Current(Isc)    9.58A
Open Circuit Voltage(Voc)    39.2V
Maximum Power Current(Impp)    8.95A
Maximum Power Voltage(Vmpp)    32.4V
Module Efficiency    17.86%
Power Tolerance    0~+3%
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.
Model:CUPV-60M-295W
Maximum Power At STC(Pmax)    295W
Short Circuit Current(Isc)    9.72A
Open Circuit Voltage(Voc)    39.6V
Maximum Power Current(Impp)    9.08A
Maximum Power Voltage(Vmpp)    32.5V
Module Efficiency    18.17%
Power Tolerance    0~+3%
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.
Model:CUPV-60M-300W
Maximum Power At STC(Pmax)    300W
Short Circuit Current(Isc)    9.78A
Open Circuit Voltage(Voc)    39.8V
Maximum Power Current(Impp)    9.17A
Maximum Power Voltage(Vmpp)    32.7V
Module Efficiency    18.48%
Power Tolerance    0~+3%
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.
Model:CUPV-60M-305W
Maximum Power At STC(Pmax)    280W
Short Circuit Current(Isc)    9.89A
Open Circuit Voltage(Voc)    40.1V
Maximum Power Current(Impp)    9.3A
Maximum Power Voltage(Vmpp)    32.8V
Module Efficiency    18.79%
Power Tolerance    0~+3%
STC:1000W/m2 irradiance, 25°C cell temp., AM1.5.


Packing Configuration
20GP Container
30  pieces on per pallet
14  pallets in per container
400  pieces module in container
40HP Container
30  pieces on per pallet
28  pallets in per container
840  pieces module in container


Datasheet Download
