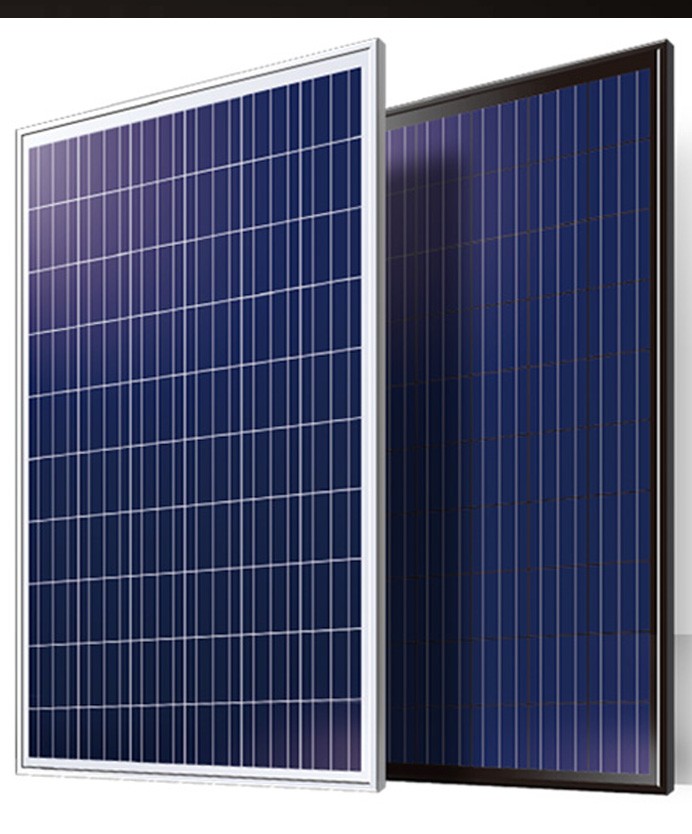

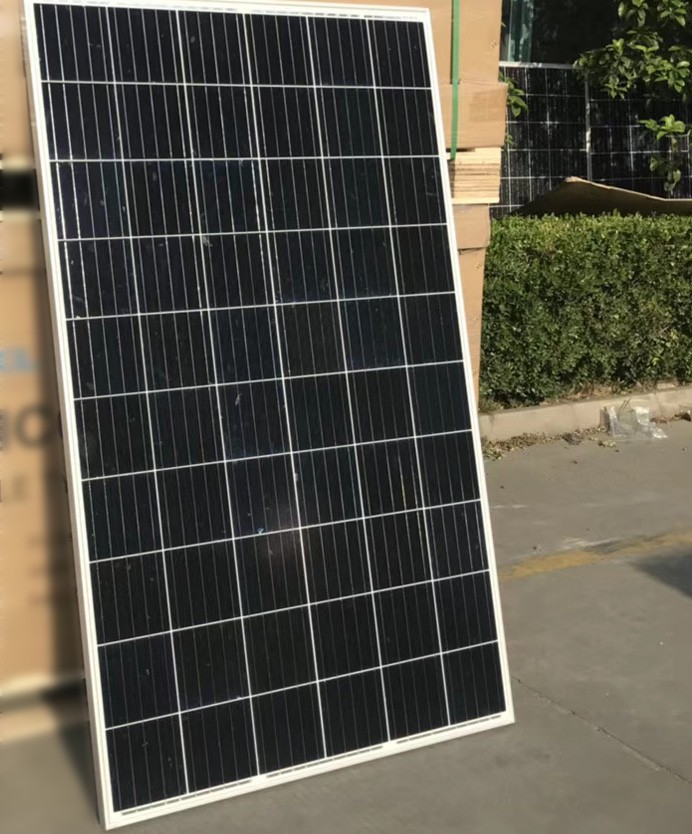

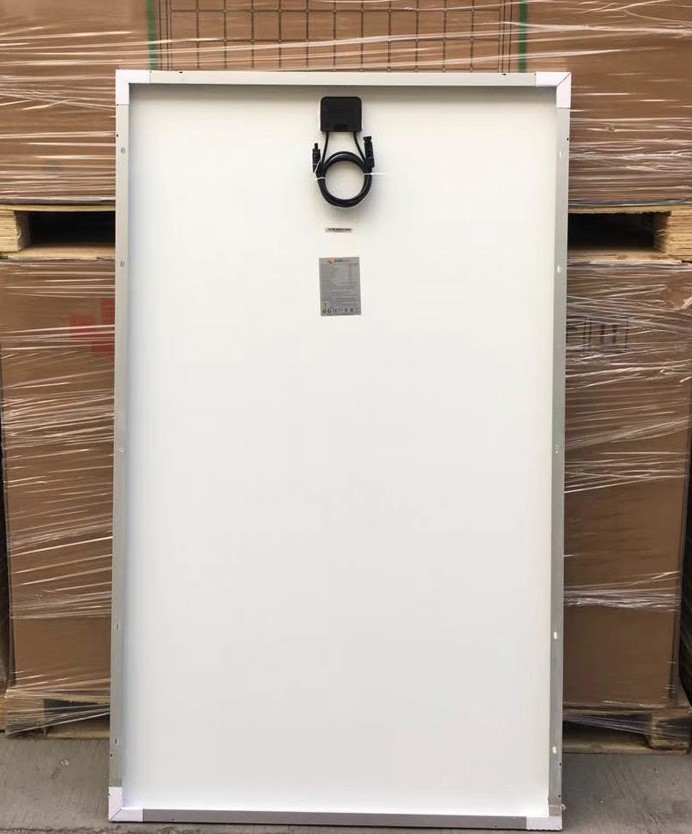

Poly solar panel 60 cells

1).IP68 Junction Box and Connector have a high degree of waterproof, effectively resist the harsh environment

2).The junction box carries a current of 15A, ensuring high current flow through the modules

3).Glue-spilled tank has a double-layer waterproof, cross-section with hook-shaped aluminum frame, enhanced by 10% of the mechanical load strength

4).The module refines the current division, thus effectively reducing the loss of up to 2% due to mismatch and increasing the power output of

the system

5).Excellent salt spray resistance, anti-ammonia and anti PID, TUV, SUD certification approved

6).Passed the 2400pa wind load and 5400pa snow load test, ensuring that the module has a stable mechanical life

7).Modules are packaged according to color classification, to achieve consistent appearance after installation

Cell Type : Poly Crystalline 156.75x156.75mm

Number Of Cells: 60 pcs（6X10）

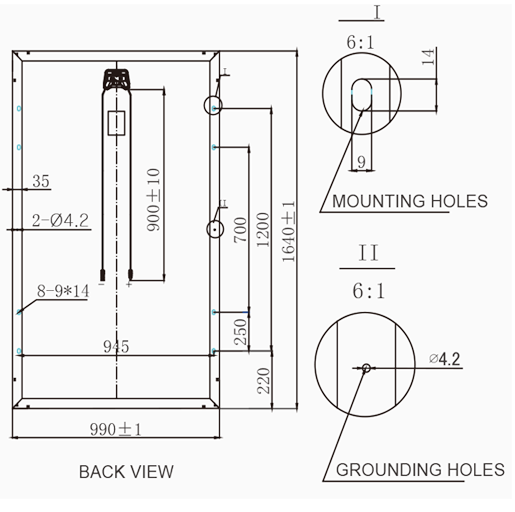

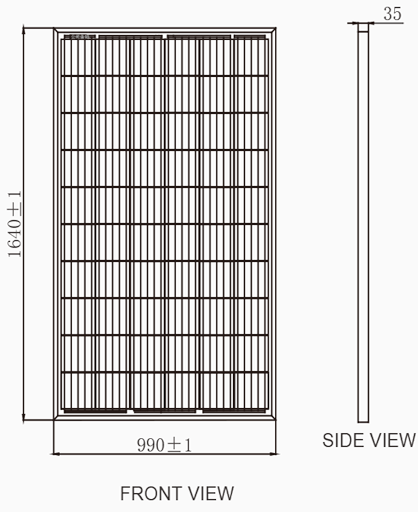

Dimensions(AxBxC):1640x995x30

Weights :19 kg

Front Glass :3.2mm Tempered Low Iron Glass

Frame : Clear Anodized Aluminum Alloy

Junction Box : IP68,with Bypass Diodes

Connectors : Mc4 Compatible

Output Cables : Tuv,±length 900mm,4.0mm²
