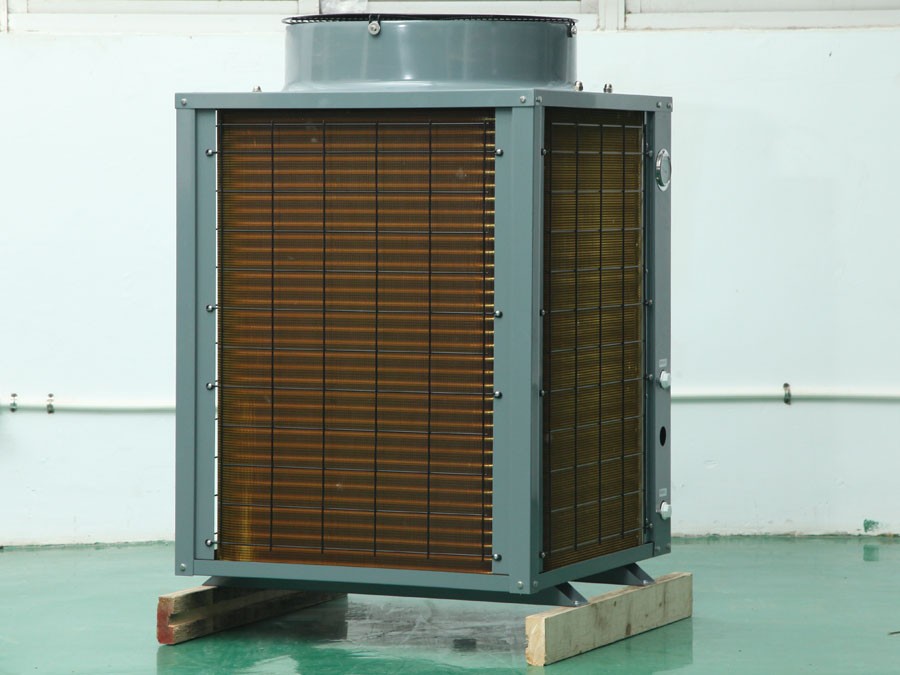

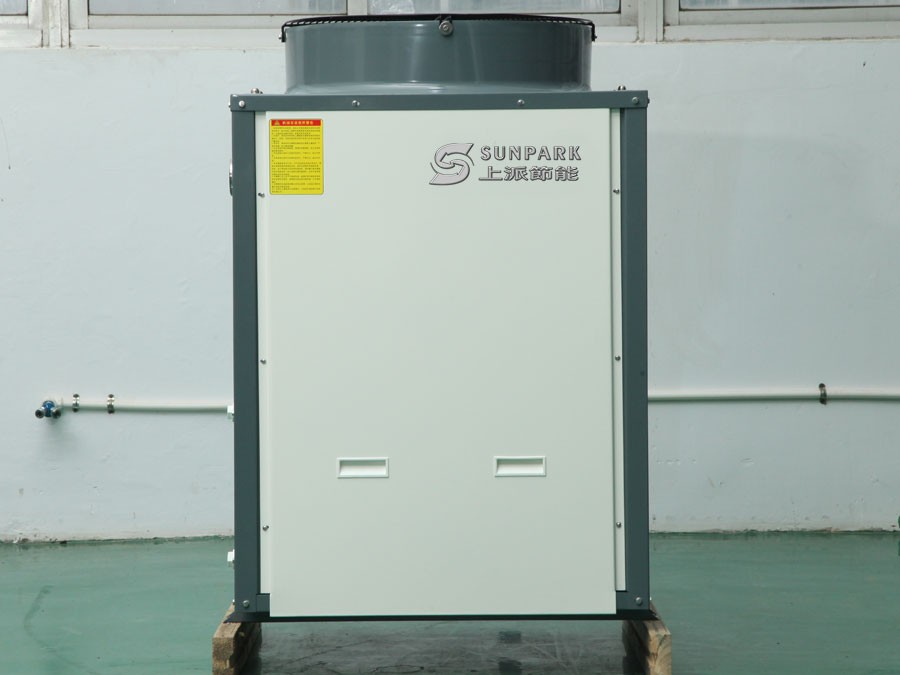

Type:Air source heat pump
Circulation Type:Water to Water
Function:Hot water and space heating
Installation:Freestanding
Compressor Type:EVI Fully Enclosed Vortex
Refrigerant:R410a/R134a
Certification:CE,ISO9001,SGS
Place of Origin:JIangsu, China
Brand Name:OEM
Storage:Optional
Warranty:3 Years
| Model | KFXRS-12I |
| Heating Power | 12KW |
| Voltage/Frequency Input | 220V/1PH/50Hz |
| Power Input | 2.8KW |
| Hot Water Output | 258 L/Hour |
| Hot Water Temperature | 55℃~60℃ |
| Fan Type / Location | Low Noise / Top |
| Cold Inlet/ Hot Outlet | DN25mm |
| Overall Deminsion | 680*680*870mm |
| Net.Weight | 108KG |
| Max.Pressure of Water to Water | 10.0bar |
| Operation Temperature | -7~45℃ |
| Model | KFXRS-12II |
| Heating Power | 12KW |
| Voltage/Frequency Input | 380V/3PH/50Hz |
| Power Input | 2.8KW |
| Hot Water Output | 258 L/Hour |
| Hot Water Temperature | 55℃~60℃ |
| Fan Type / Location | Low Noise / V type |
| Cold Inlet/ Hot Outlet | DN25mm |
| Overall Deminsion | 680*680*860mm |
| Net.Weight | 108KG |
| Max.Pressure of Water to Water | 10.0bar |
| Operation Temperature | -7~45℃ |
| Model | KFXRS-19I |
| Heating Power | 19KW |
| Voltage/Frequency Input | 220V/1PH/50Hz |
| Power Input | 4.4KW |
| Hot Water Output | 408 L/Hour |
| Hot Water Temperature | 55℃~60℃ |
| Fan Type / Location | Low Noise / V type |
| Cold Inlet/ Hot Outlet | DN25mm |
| Overall Deminsion | 770*770*980mm |
| Net.Weight | 140KG |
| Max.Pressure of Water to Water | 10.0bar |
| Operation Temperature | -7~45℃ |
| Model | KFXRS-19II |
| Heating Power | 19KW |
| Voltage/Frequency Input | 380V/3PH/50Hz |
| Power Input | 4.4KW |
| Hot Water Output | 408 L/Hour |
| Hot Water Temperature | 55℃~60℃ |
| Fan Type / Location | Low Noise / V type |
| Cold Inlet/ Hot Outlet | DN25mm |
| Overall Deminsion | 770*770*980mm |
| Net.Weight | 140KG |
| Max.Pressure of Water to Water | 10.0bar |
| Operation Temperature | -7~45℃ |
Remarks：
Date under the test condition of outdoor dry ball temperature is 20℃,moisture ball temperaturer is 15℃initial water temperature in water tank is 15℃ and finial temperaturer is 55℃
Voltage ±10% allowed
Date is adjustable because of technology upgrading,which based on nameplate if any change
